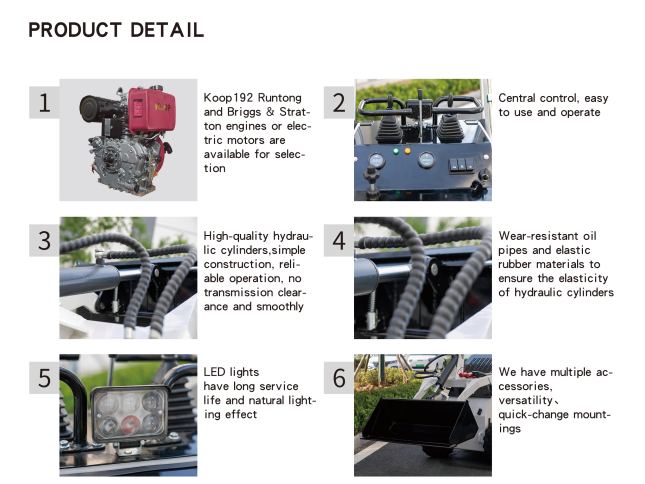

Diverse Power Options: It can be equipped with Koop192, Runtong, Briggs & Stratton engines or electric motors, meeting different users' demands for power sources. Whether users pursue the strength of fuel - powered engines or prefer the environmental - friendliness and low noise of electric power, there are suitable options.
Control System
Convenient Operation: With a central control system, it is simple and easy to understand, reducing the learning cost for operators and improving work efficiency.
Hydraulic System
Reliable Performance: Equipped with high - quality hydraulic cylinders, it has clear and smooth transmission, ensuring stable and reliable operation and being able to handle various working conditions.
High Durability: Using wear - resistant oil pipes and elastic rubber materials, it ensures the elasticity and service life of the hydraulic cylinders, reducing the frequency of hydraulic system failures and maintenance.
Lighting System
Excellent Lighting: The LED lights have a long service life and a natural - light - like lighting effect. In working environments with insufficient light, they can provide a good view, ensuring safety during night - time or dim - light operations.
Attachment System
Diverse Attachments: It is equipped with a variety of attachments, and the quick - change interface design makes attachment replacement convenient. This expands the functions of the equipment, and it can be used for various operations such as excavation, handling, and cleaning, improving the utilization rate of the equipment.

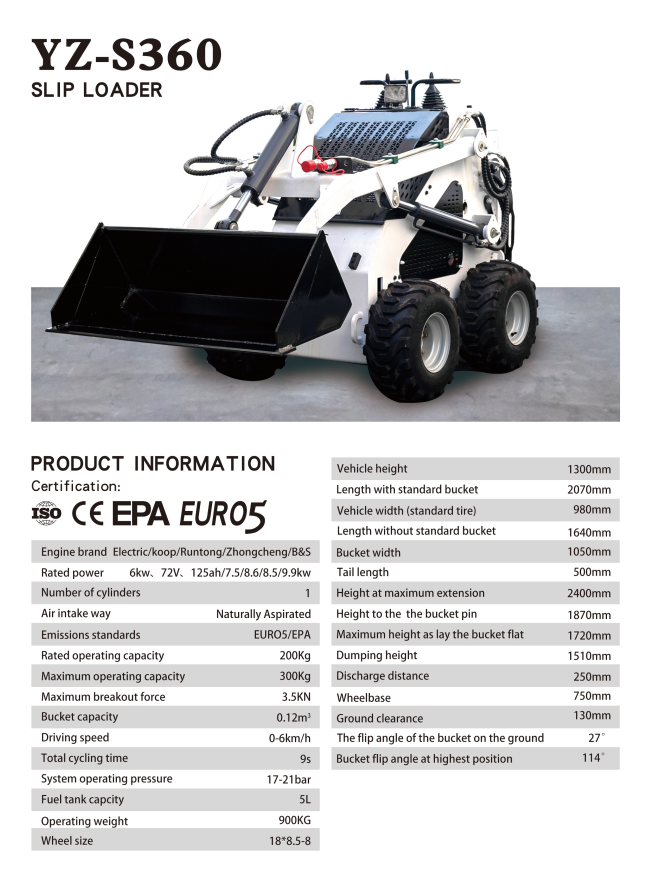

Good Passability: With a vehicle height of 1300mm, width (standard tire) of 980mm, wheelbase of 750mm, and ground clearance of 130mm, it has a compact size and a small turning radius. It can operate flexibly in narrow spaces, showing excellent passability.
Decent Load - bearing Capacity: The rated operating capacity is 200KG, the maximum operating capacity is 300KG, and the maximum breakout force is 3.5KN, which can meet the load - bearing requirements of general small - scale engineering and material handling.
Flexible Lifting Operations: The maximum lifting height of the bucket is 1720mm, the dumping height is 1510mm, the discharge distance is 250mm. The bucket flip angle on the ground is 27°, and at the highest position is 114°. It has a wide operating range and flexible movements, facilitating material loading, unloading, and transfer.
Range and Operational Guarantee: The system operating pressure is 17 - 21bar, and the fuel tank capacity is 5L. The electric version has a corresponding range design to ensure continuous operation for a certain period. The operating weight of 900KG and the appropriate wheel size (18×8.5 - 8) ensure the operational stability of the equipment.
Environmental Compliance: It complies with ISO, CE, EPA, EURO5 and other certification standards, and its emissions meet the EURO5/EPA standards. It has good environmental performance and can be used in areas with strict emission requirements.
